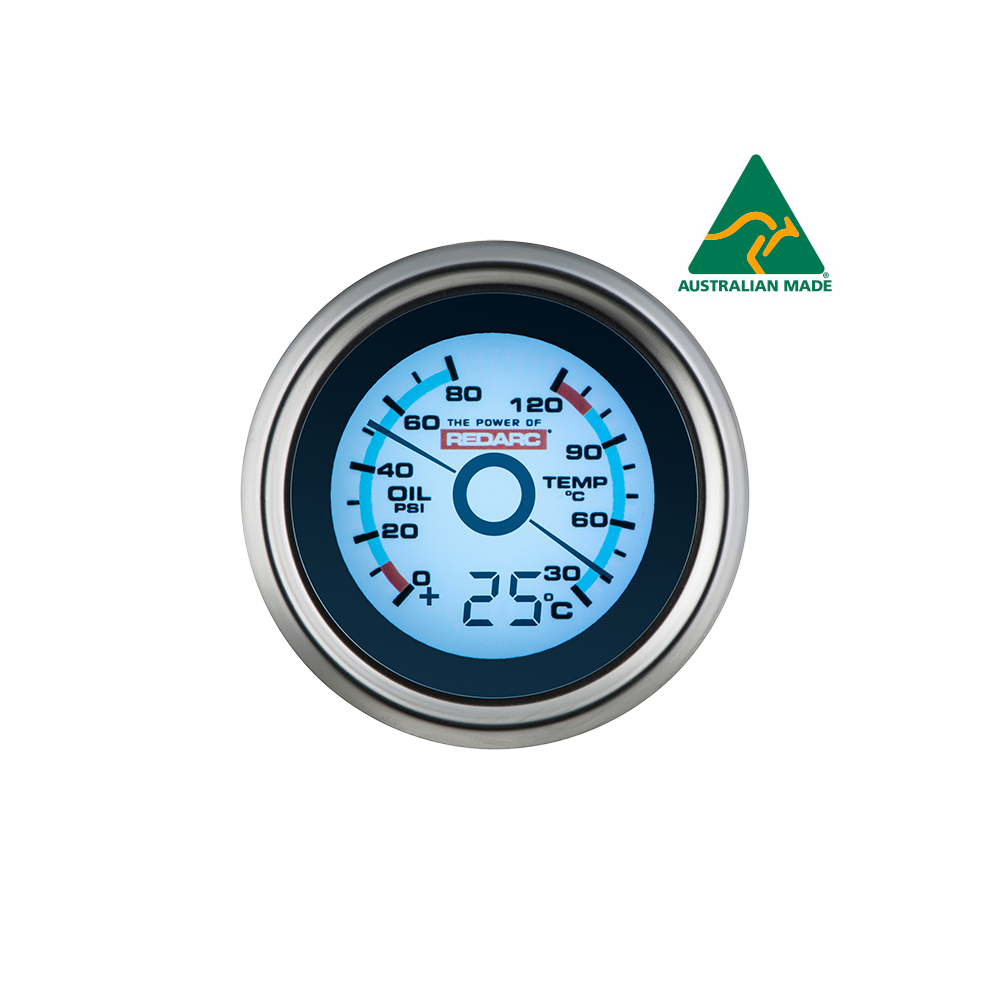

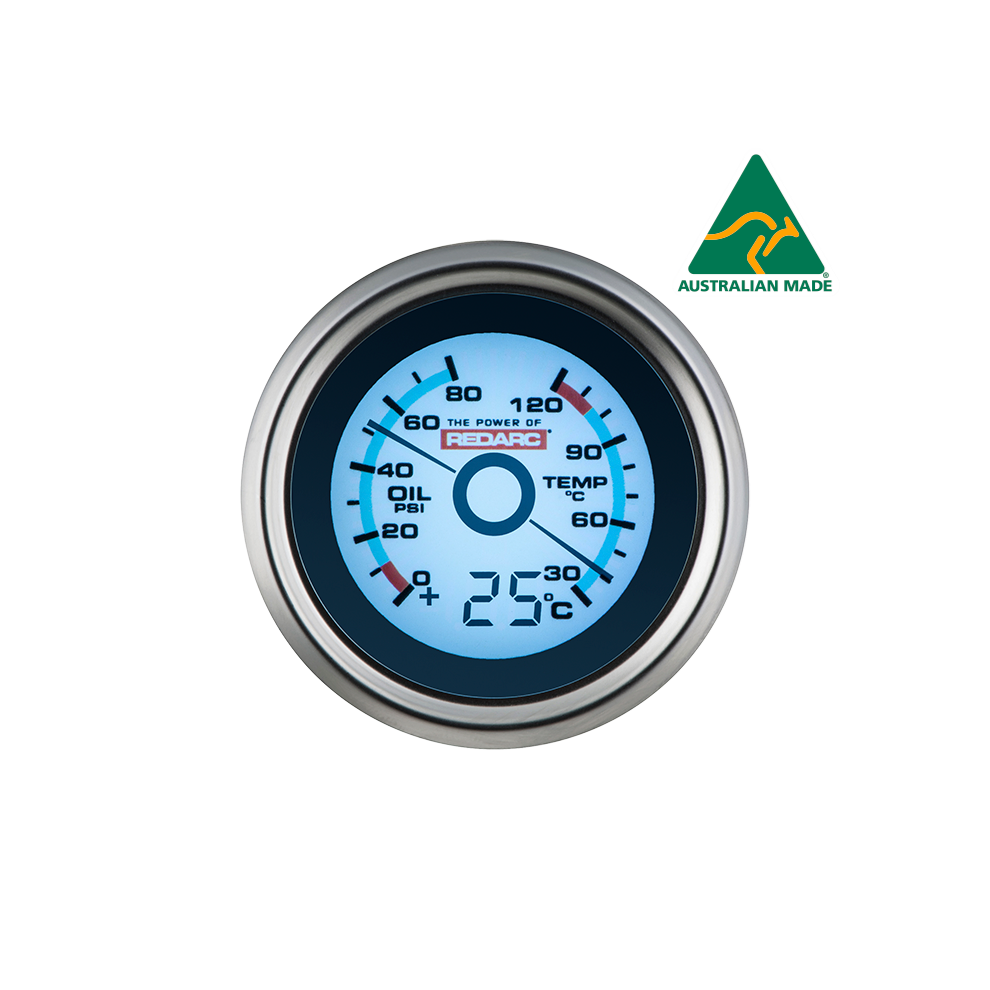

The REDARC 52mm single oil pressure & water temperature gauge is ideal for monitoring your engines oil pressure and coolant temperature.
The G52-PWT gauge is supplied with one REDARC oil pressure sensor that displays from 0 to 80 PSI and a REDARC 1/8 NPT thread water temperature sensor that displays from 30 to 120 degrees Celsius.
Monitoring oil pressure ensures the longevity of your vehicle and allows you to ensure that the correct pressure is maintained so that your car bearings are well lubricated. This is crucial when travelling at continuous high speeds and towing heavy loads. Low oil pressure can be an indicator of a low oil level, diluted or worn out oil, worn engine bearings, high oil temperature or a worn oil pump.
The G52-PWT gauge also supports one of four optional temperature sensors. You will need to purchase one of the following REDARC temperature sensors to equip the gauge with this function:
The G52-PWT gauge diameter requires a 52mm hole for mounting. REDARC offer a range of mounting solutions including a 2” black plastic mounting cup (GH-CUP) and one (GH-MP1), two (GH-MP2) and three (GH-MP3) hole gauge mounting panels. Radio inserts are also available for the Toyota Hilux (GH-RI05).
The REDARC 24 to 12 Volt adaptor (GA-2412V) can be used to connect this gauge to a vehicle with a 24 volt ignition and lighting supply, however only a 12 volt battery can be monitored.
REDARC recommends the purchase of an Enhanced Lighting Controller (GA-ELC) with this gauge. The GA-ELC is designed to enhance the lighting of your REDARC gauges as only one required for a set. It is to be used when you do not have a dimming circuit to connect your gauge to or the dimming circuit in your vehicle does not dim the REDARC gauge to your liking.
The GA-ELC also allows you to program nighttime brightness and colour of your REDARC gauges, including dimming if connected to a dash dimmer. Once programmed your gauges will change colour when turning on your park lights and back to a daylight colour when you turn them off. The GA-ELC is also 24 volt capable.
* = Optional accessory, not included with standard purchase
Warranty | 2 Years |
Sensor(s) (Included) | GS-P-150, GS-OWT1-8 |
Sensor (Optional) | GS-UT-80 / GS-UT-120 / GS-OWT1-4 / GS-OWT1-8 |
Standby Current Draw | 30mA |
Input (Operating) Voltage | 6 - 16V |
Height (mm) | 42 |
Weight (kg) | 0.05 |
The REDARC 52mm single oil pressure & water temperature gauge is ideal for monitoring your engines oil pressure and coolant temperature.
The G52-PWT gauge is supplied with one REDARC oil pressure sensor that displays from 0 to 80 PSI and a REDARC 1/8 NPT thread water temperature sensor that displays from 30 to 120 degrees Celsius.
Monitoring oil pressure ensures the longevity of your vehicle and allows you to ensure that the correct pressure is maintained so that your car bearings are well lubricated. This is crucial when travelling at continuous high speeds and towing heavy loads. Low oil pressure can be an indicator of a low oil level, diluted or worn out oil, worn engine bearings, high oil temperature or a worn oil pump.
The G52-PWT gauge also supports one of four optional temperature sensors. You will need to purchase one of the following REDARC temperature sensors to equip the gauge with this function:
The G52-PWT gauge diameter requires a 52mm hole for mounting. REDARC offer a range of mounting solutions including a 2” black plastic mounting cup (GH-CUP) and one (GH-MP1), two (GH-MP2) and three (GH-MP3) hole gauge mounting panels. Radio inserts are also available for the Toyota Hilux (GH-RI05).
The REDARC 24 to 12 Volt adaptor (GA-2412V) can be used to connect this gauge to a vehicle with a 24 volt ignition and lighting supply, however only a 12 volt battery can be monitored.
REDARC recommends the purchase of an Enhanced Lighting Controller (GA-ELC) with this gauge. The GA-ELC is designed to enhance the lighting of your REDARC gauges as only one required for a set. It is to be used when you do not have a dimming circuit to connect your gauge to or the dimming circuit in your vehicle does not dim the REDARC gauge to your liking.
The GA-ELC also allows you to program nighttime brightness and colour of your REDARC gauges, including dimming if connected to a dash dimmer. Once programmed your gauges will change colour when turning on your park lights and back to a daylight colour when you turn them off. The GA-ELC is also 24 volt capable.
* = Optional accessory, not included with standard purchase
Warranty | 2 Years |
Sensor(s) (Included) | GS-P-150, GS-OWT1-8 |
Sensor (Optional) | GS-UT-80 / GS-UT-120 / GS-OWT1-4 / GS-OWT1-8 |
Standby Current Draw | 30mA |
Input (Operating) Voltage | 6 - 16V |
Height (mm) | 42 |
Weight (kg) | 0.05 |
